Alesis DM Lite Kit - Frequently Asked Questions

1 1 1 1 1 Rating 3.64 (14 Votes)

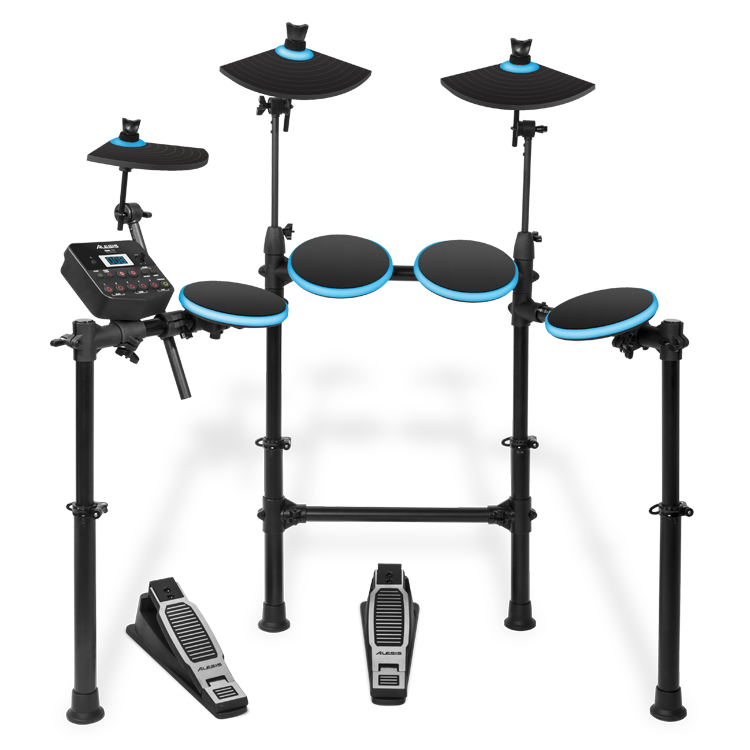

alesis dmlite main3Add an exciting light show to any performance! The Alesis DM Lite Kit with light-up LED pads will have any novice or accomplished drummer playing—and playing better—right away. The pre-assembled kit sets up quickly—no tools required. In addition to hundreds of world-class sounds, the DM Lite Module contains a built-in drum coach offering play-along patterns and exercises to improve your skills. Use the DM Lite Kit on stage with an amplifier, or practice through headphones in your bedroom or dorm. This complete package even includes sticks, so you can start playing today.

This article walks through a number of Frequently Asked Questions about the Alesis DM Lite Kit.


Frequently Asked Questions


How do I balance the play-along track volume with the drums?

To adjust the volume of the Pattern and/or the sounds from the Kit that you are playing, follow the steps suggested below:

Adjusting Pattern Volume

    • Double-press the PATTERN button.
    • Use the +/- buttons to adjust the pattern level.

Adjusting the Kit Volume

    • Double-press the chosen Kit button.
    • Adjust the level with the +/- buttons
    • The setting will save automatically after 4 seconds.


Does the Alesis DM Lite module require drivers to be used with a computer?

No drivers are necessary!  The Alesis DM Lite module is a plug-and-play class-compliant device that needs no external drivers to be installed.  Simply connect it to your computer with a USB cable, open up your favorite drum software, choose the device, and go!

If there are any questions on whether or not the Alesis DM Lite module has connected and is being read correctly by your computer, there are some simple tests that can be performed to make sure.  The easiest is what we call the "10-second is-it-broken? test".

To verify that the device is working, and is being seen by the computer…

    1. On Windows XP, Vista, or 7, open the Device Manager.
    2. Disconnect the controller from the computer, count to 5, then reconnect the controller
      Does the list of devices at all change, refresh, or flash? If yes…Good, the product is recognized by the computer.

If the product does pass the test above, it is not defective, and the difficulty is caused by misconfigured software settings or options.  Carefully follow the setup instructions for the software you are using, or contact Technical Support for assistance.

If the product does NOT pass the test above, it could be defective, or it could be that other factors are causing the symptoms.

For more information on troubleshooting class-compliant USB devices, see the article linked here.


Can the Alesis DM Lite module send audio to the computer?

There is a USB/MIDI connection for use with virtual instruments and recording software. This connections allow for the passing of MIDI information only.  If you want to send the actual audio from the module to your computer, connect the main audio outputs from the rear of the module directly to the inputs of your audio interface.


If I need to replace any of the individual parts on the kit, are they available for purchase separately?

There are a number of parts available for purchase separately for this kit.  You will find the part numbers and description below.  If you would like to find availability and pricing for any of these parts, contact Alesis at or call the Alesis Parts Department at 1-401-658-5760 Ext 1407.

 102150148-A  Cymbal Pad with Blue LED
 102370037-A  Cymbal Clamp
 102130143-A  Drum Pad with Blue LED
 102370027-A  Drum Clamp
 102170069-A  Hi Hat Pedal
 102170070-A  Kick Pedal
 1021801090-A  DMLite Module
 6281301030-A  Cable Snake



Technical Support and Warranty Service

Whether you are a customer or dealer, if you already own a Alesis product, or if you have pre-sales or parts questions, the Alesis technical support team is available to help!

Each product has a dedicated support page on the website where you can find manuals, specifications, software updates, drivers and troubleshooting guides:

Visit the link below to connect with any of the following support options: online community support, phone support, email support.
