ion asteriskMany ION turntables utilize the same, easily replaceable, CZ-800-10 cartridge. There are many reasons why you might need to replace the cartridge on your turntable, but the most common reason is that you’ve had your turntable for a long time and the stylus is worn. This guide will walk you through removing your old cartridge and replacing it with a new one.



Contents



Which ION turntables use the CZ-800-10 cartridge?

The CZ-800-10 current fits the following ION Audio turntables:



Replacing a CZ-800-10 cartridge

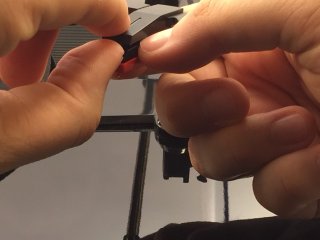

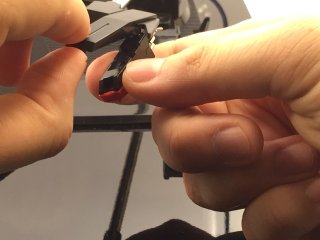

  1. Use your left hand to grip the tab on the front of the headshell between your finger and thumb. With your right hand, grip the cartridge from the sides and pull it away from you and down while applying upward pressure to the retention clip on the headshell with your left hand.

    ion cz800 replacement 1      ion cz800 replacement 2

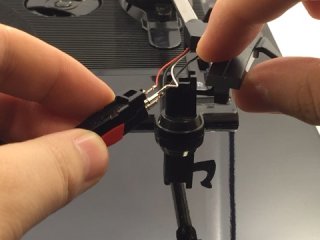

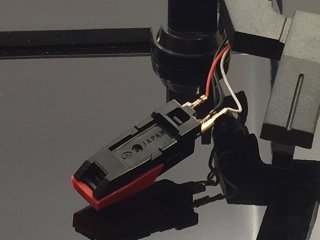

  2. Pull the cartridge away and move the headshell to the side.

    ion cz800 replacement 3      ion cz800 replacement 4

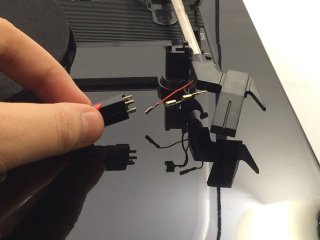

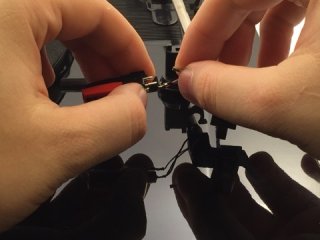

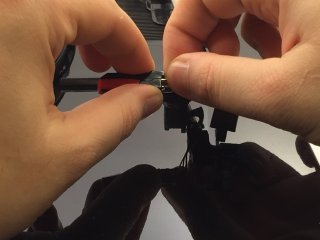

  3. Hold the cartridge with your left hand and use your right hand to disconnect the wires from their pins. Try gently wiggling and pulling from the metal connectors one by one. Do not pull on the actual wires as it may cause damage. Note how the wires are connected - you'll need to plug the replacement cartridge in the same way.

    ion cz800 replacement 5      ion cz800 replacement 6      ion cz800 replacement 7

  4. With your old cartridge now completely disconnected, you're free to connect your new CZ-800-10. Re-connect the wires in the same configuration and snap the new cartridge into the headshell.
