gesture beam 102 mainThe Marq Lighting Gesture Beam 102 is the latest model in moving heads line. This 2-sided Moving head has independent RGBW capabilities on each side, with a wide angle to provide a crisp beam effect. The guide answers some Frequently Asked Questions about the Marq Lighting Gesture beam 102.



Frequently Asked Questions





What does the Gesture Beam 102 come with?

Inside the box you will find the following:

  1. Gesture Beam 102
  2. IEC cable (power cable)
  3. 1/4 turn Hanging Bracket
  4. User Guide
  5. Safety & Warranty manual



Does the Gesture Beam 102 Have DMX capabilities?

Yes, it does!  The Gesture Beam 102 has the traditional DMX IN and DMX OUT jacks built in.  This will allow you to use these lights with a qualified DMX controller, and with the proper DMX Cables.



Does it have a Slave mode?

The Gesture Beam 102 does have a Slave mode

This is very easy to do, learn how by following the steps suggested below:

  1. Press the Menu button to access the internal options.
  2. Use the Down button to highlight the Auto Movement selection, and push Enter.
  3. Use the Down button to highlight SLAv, and push Enter.
  4. You can now use the Up or Down buttons to select 1-4 this option, and press Enter to choose your selection.



What does each of the of the DMX channels do on the Gesture Beam 102?

There a 4 different channel modes to select from 3,7,15, and 22 channel modes. See below what all 22 channels will allow you to control.

  1. Pan
  2. Pan Fine
  3. Tilt
  4. Tilt Fine
  5. Pan/Tilt Speed
  6. Pan continuous rotation
  7. Tilt continuous rotation
  8. Master Dimmer
  9. Shutter
  10. A Red Dimmer: A-side of fixture Red dimmer
  11. A Green Dimmer: A-side of fixture Gren dimmer
  12. A Blue Dimer: A-side of fixture Blue dimmer
  13. A White Dimmer: A-side of fixture White dimmer
  14. B Red Dimmer: B-side of fixture Red dimmer
  15. B Green Dimmer: B-side of fixture Green dimmer
  16. B Blue Dimmer: B-side of fixture Blue dimmer
  17. B White Dimmer: B-side of fixture White dimmer
  18. Color Presets: Overrides Channels 10-17
  19. Color Programs: Channels 008-199 programs, 200 - 255 sound active
  20. Program Speeds: Channels 008 - 199 programs, channels 200 - 255 Sound-Active sensitivity
  21. Macro Functions: Channels 008 - 135 Automatic Movements, 136 - 255 Sound-Active movement
  22. Control Functions: All functions are executed after 2 seconds, on the desired channel



Does the Gesture beam 102 have a Sound Active mode, how do I setup Sound-Active Mode?

For setting the Sound-Active mode, follow the steps below.

  1. Press the Menu button to access the internal options.
  2. Use the Down button to highlight the Auto Movement selection, and push Enter.
  3. Use the Down button to highlight Soun, and push Enter.
  4. You can now use the Up or Down buttons to turn this option On or Off, and press Enter to choose your selection.



How do setup the Sound-Active Sensitivity?

For setting the Sound-Active mode sensitivity, follow the steps below.

  1. Press the Menu button to access the internal options.
  2. Use the Down button to highlight the Auto Movement selection, and push Enter.
  3. Use the Down button to highlight SEnS, and push Enter.
  4. You can now use the Up or Down buttons to turn this option On or Off, and press Enter to choose your selection.



How do I setup the Gesture beam 102 with a controller?

If you are going to use the Marq Lighting Gesture Beam 102 with a DMX controller, follow the steps suggested below:

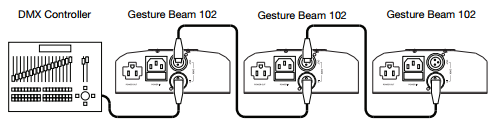

  1. Connect a DMX cable from the DMX output on the DMX controller that you are using, and attach it to the DMX input on the Gesture Beam 102.  Below is a picture showing this.

     Gesture Beam 102 DMX

  2. Each fixture in this chain will receive all DMX data. Depending on how many lights are inside your universe will depend on how many lights may be used.



What is the Powerlink Feature?

The Powerlink feature lets you link multiple Marq Lighting Gesture Beam 102 moving heads together with power cables (IEC cables).  One reason to do this may be if you have a shortage of wall outlets or power supplies to plug multiple units into. You can then power all of them when having just one Marq Lighting Gesture beam 102 connected to a wall outlet.

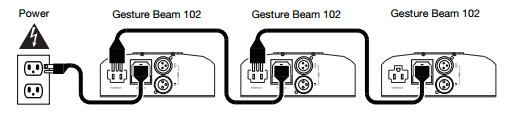

  1. Insert the included power cable into the wall and then the other end into the Marq Lighting Gesture Wash 10.

    Gesture Beam 102 PWR

  2. On the opposite power plug on the Marq Lighting Gesture Beam 102, you will see a power jack that works the opposite way.  On this jack plug the opposite end of an IEC cable here.
  3. Now plug the other end of the power cable into the power jack of another Marq Lighting GestureWash 102.  This will supply power to the Marq Lighting Gesture Beam 102.



Does the Gesture Beam 102 have a limit for Pan & Tilt?

No, the Gesture Beam 102 has continuous Pan & Tilt for endless rotation on both axes



What is the beam angle?

The Marq Lighting Gesture Beam 102 has a 3.4-degree beam angle on both sides of the fixture.



My Gesture Beam 102 appears to be malfunctioning 30 feet in the air. What can I do?

It is possible to reset the Gesture Beam 102 from the DMX controller (only if in 22 channel mode).  On channel 22, send the Reset All DMX value between 200 - 209,  for more than 2 seconds to reset the entire fixture.  This is a soft reset that restores the Gesture Beam 102 to the power on state.
